Our Power factor correction panel in kolkata is designed to improve the power factor in electrical systems while ensuring energy and cost-efficiency. They are suitable for a variety of processing plants with fluctuating loads, such as steel plants, chemical plants, paper mills, and automotive factories.
Read More

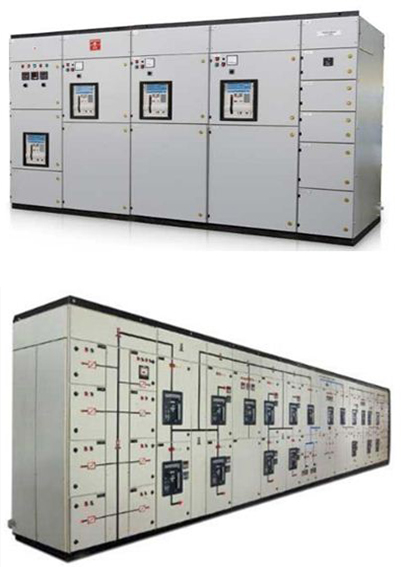

HT Vacuum circuit breaker Panel (VCB) : Manufacturer of L&T make VCB panel a range of 3.3, 6.6,11, 33kV along with current range of 630A, 800A, 1200A 3100A breaking capacity of 26.3kA, 40kA, 50kA with all kind of customized relay protection and monitoring.
Read More
PCCs’ / PDBs’are metal clad, totally enclosed, rigid, floor mounted, air-insulated, cubical type suitable for operation on three phases / single phase, 415 / 230 volts, 50 Hz. PCCs’are rugged and designed to withstand environmental conditions at site, staring with a minimum ambient temperature of 45 degree Celsius, 80 per cent humidity and dusty weather. The panelshave a current-carrying capacity of up to6300 Amp. Our panels have a Type Test Certificate from CPRI for 50KA for 1sec Short Circuit test. Our PCC Panels are integrated with all necessary protections to ensure that it meets all prevailing industry safety standards. We offer PCC with both Draw Out&Non-DrawOut section. Read More

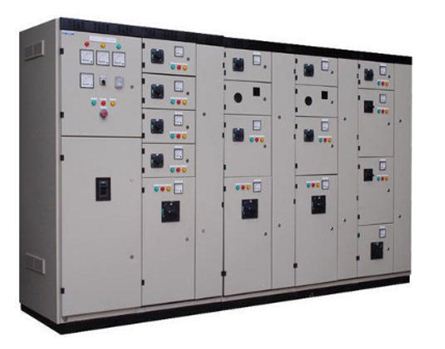

Our LT MCC PANELS are designed in a wide variety which includes Fully-draw out&Non-draw out type / Compartmentalized / Non compartmentalized / Single Front / Double Front operated.
Panels are equipped with ACBs / MCCBs/ SFUs/MCBs, DOL, ATS or Star Delta Starters. We provide facilitiesfor both Local and Remote(PLC/DCS/HMI/SCADA) operation. Standardprotections provided in MCCs are Over Load, Short Circuit, Single Phasing etc. and special features include Earth Fault, Reverser Power, Under Load, Over and Under Voltage, etc. We also offer intelligent MCCs which are capable of intelligent decision makings and can be easily interfaced with third party control systems for data logging, real time analysis and historical performance reviews.Read More
We are ISO certified and CPRI certified automatic power factor correction (APFC) panel manufacturer in Kolkata. That is popular amidst our customers for uncompromising standards and advanced functionality. APFC panels are basically used for automatic power factor correction. We manufacture Thyristor operated, Detuned, PLC operated every kind of APFC Panel.
Read More
 panels.jpg)

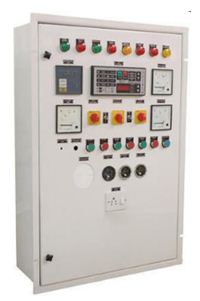

AMF Control Panel is used for automatic change over between mains and DG supply. Our offerings include DC Meters, Battery Charges. etc and necessary protection circuits. As special features, we can provide engine safety features like Low Lube Oil, OilTemp. High, Charge Low alarms, etc.Read More
panels.jpg)

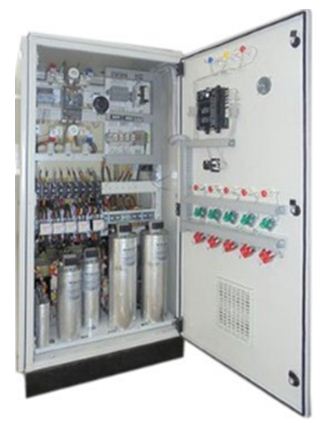

We offer APFC Panels up to 1000KVA controlled through Thyristor (IGBT) Cards or Contactors based depending on the nature of the load. To overcome harmonic effects, we use detuned reactors. Our panels are equipped with APP/MPP heavy duty capacitor banks as per characteristics/nature of electrical loads. We use microprocessor-based APFC Relay up to 16 stages. As a special feature, our panel provides the ability to monitor the APFC Relay output on the computer. This panel is of great use to minimize loss and wastage of energy and heavy penalties imposed by electricity boards due to unbalanced usage of power. Our APFC panels are fully integrated with suitable APFCrelay, switchgear, and capacitor banks to offer a complete solution to effectively eradicate the lagging power factor.Read More

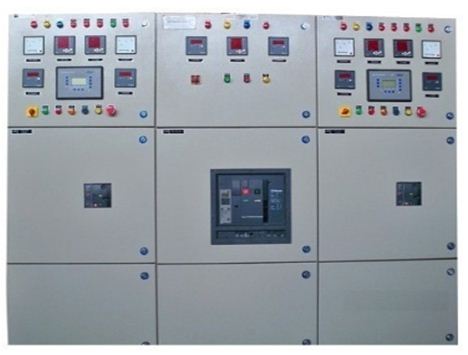

We offer DG Synchronization Panels which are mainly designed and used to meet power system requirements. These panels function both manually and with an automatic synchronizing function for two or more generators or breakers. They are widely used in synchronizing generators and offering multiplex solutions. Our high-quality range of DG synchronizing panels ARE available with capacities of connected generators, and are fabricated using premium quality electrical components.Read More

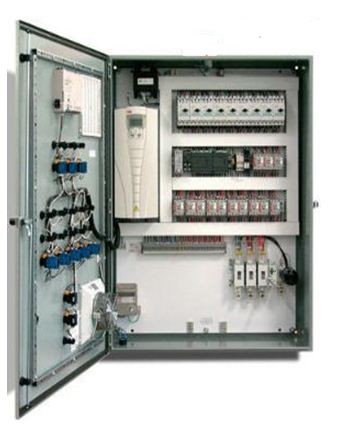

We are a trusted player in the Automation industry with footprint across Pan India and abroad. With our expertise in doing automation projects with large OEMs in various industries, we have ventured into Designing, Manufacturing and Export of Control Panels. Some of our prime deliverables are PLC/DCS Control Panels for varied applications/industries, Marshalling Cabinets, Remote Input/Output Panels, Drive Control Panels, PID Control Panels, Mimic Control Panels and many more.
PLC Control Panels we manufacture comes in three different forms:
Read More

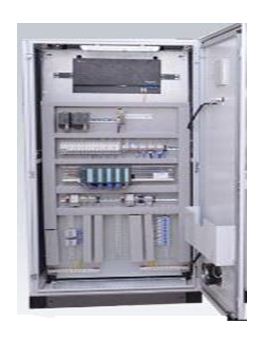

Flat Control Panels - It is the least expensive of all types and easy to construct.The straight and vertical plane of the panel allows an orderly layout of channels, electrical ductwork, and arrangement of miscellaneous equipments.
The fig. represents the elevation view of a typical Flat Control Panel.
Read More
Mimic Control Panels – These panels allow greater use of the front plane of the board.The top portion of the panel is swung backwards to an angle normal to the line of sight allowing more space for equipment housing.
The fig. represents the elevation view of a typical Break Front Control Panel.
Read More
2. Console type Control Panels/Control Desks–These panels are designed based on the number of equipments/instruments to be accommodated in the panel and are often coupled with ‘’flat backup” panels which contain large-sized instruments and auxiliary components.
The fig. represents the front view of a typical Console Type Control Panel/Control Desk.
Read More
The pressure swing adsorption (PSA) technique to produce high purity oxygen is researched by using a zeolite molecular sieve column and a carbon sieve column. A control system based on PLC is designed to regulate the flow and pressure, as well as to control the solenoid valves, with the advantages of high adaptability and reliability. The technical process of two adsorption stages is selected, the optimum adsorption time of every column is determined and the effect of air displacement on oxygen purity in the carbon molecular sieve column is analyzed.
